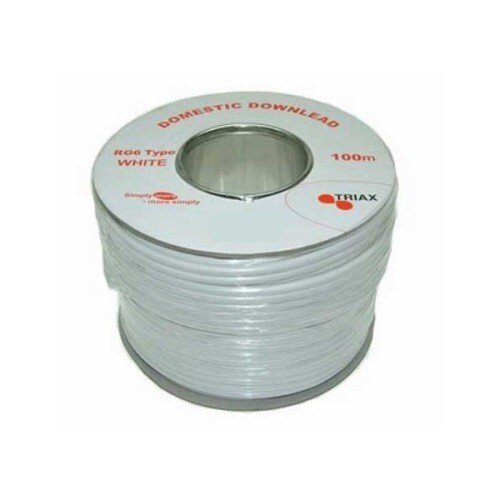

Triax RG6- U PVC White 100m
Triax RG6- U PVC White 100m - Image 2

Triax RG6- U PVC White 100m€25.95

RG6/ U – PVC white, 100m reel, Coax Cable
–       Rated according to CPR EN50575 Fire standard Fca
Quantity

Description

Article Number: 370767

RG6/ U – PVC white, 100m reel, Coax Cable
–       Rated according to CPR EN50575 Fire standard Fca
ORDER INFORMATION
EAN Number 5702663707672
MECHANICAL
Cable length 100 m
Minimum bending radius – single/repeated 27.5 / 75.5 mm
Colour White
Packaging Height 0.160 m
Packaging Width 0.220 m
Packaging Depth 0.220 m
Net Weight 3.620 kg
Tara Weight 0.000 kg
Total Weight 3.620 kg
Remarks 100m Card Reel
CONSTRUCTION
Inner conductor – material CCS
Inner conductor – dimension 1.02 mm
Dielectric – material Foam PE
Dielectric – dimension 4.6 mm
1. Shield foil – material Alu/PET
2. Shield braid – material Alu
2. Shield braid – coverage 40 %
Jacket – material PVC
Jacket – dimension 6.50 mm
OPERATIONAL
Application Indoor
Fire Class EN 50575 (Fca)
DoP number TR0027
Screening Efficiency EN50117 (Class B)
SHIELDING
Screening attenuation @ 30-1000 MHz > 75 dB
ELECTRICAL
Impedance 75 Ω
Capacity 52 pF/m
Velocity ratio < 82 %
Inner DC resistance < 102 Ω/km
Outer DC resistance < 60 Ω/km
LOSS
Attenuation (20°C/100mtr) @ 5 MHz 1.6 dB
Attenuation (20°C/100mtr) @ 50 MHz 4.6 dB
Attenuation (20°C/100mtr) @ 100 MHz 6.5 dB
Attenuation (20°C/100mtr) @ 200 MHz 9.5 dB
Attenuation (20°C/100mtr) @ 470 MHz 15.0 dB
Attenuation (20°C/100mtr) @ 862 MHz 19.5 dB
Attenuation (20°C/100mtr) @ 1000 MHz 21.5 dB
Attenuation (20°C/100mtr) @ 1750 MHz 29.0 dB
Attenuation (20°C/100mtr) @ 2150 MHz 32.5 dB
Attenuation (20°C/100mtr) @ 3000 MHz 39.0 dB
RETURN LOSS
Structural return loss @ 5-470 MHz 23 dB
Structural return loss @ 470-862 MHz 23 dB
Structural return loss @ 470-1000 MHz 23 dB
Structural return loss @ 862-2400 MHz > 20.0 dB
Structural return loss @ 1000-2000 MHz 18 dB
